10SQE - Constant Pressure Pump

SQE Pump and Motor

The SQE is the only constant pressure pump on the market fully equipped with built-in electronic controls which allow for advanced computer controlled performance and state of the art protection features including sophisticated diagnostics. The motor design is a Variable Speed Drive which electronically changes the pump speed to match demand providing you with the incredible comfort of constant pressure.

The Grundfos SQE pump model numbers are very descriptive!! The flow and pressure for each pump is indicated by the model number. All 5SQE pumps are ideal for flows of gallons per minute. The ending of the model number indicated the pressure in feet of head. For example, the 5SQE05-90 is ideal for flows of 5 gallons per minute, at pressures of 90 feet of head. It works the same for all SQE pump model numbers.

Each unit is equipped with:

• Soft start – prevents water hammer and motor overheating
• Dry run protection – pumps are water lubricated and if your well runs low, an unprotected pump will die
• Overload protection – if a pump becomes clogged with debris like sand or grass, it can destroy an unprotected motor
• Over and undervoltage protection – the lifetimes of unprotected motors can be greatly reduced by improper voltages. Rural parts of the country are notorious for wide variations in voltage supply

CU301 User Interface

NOTE: The CU301 Controller is required for the SQE pump to operate as a constant pressure pump system. CU301 Controller is sold separately. The CU301 User Interface is the easy to use command and control computer for operating the pump in constant pressure mode. The user simply chooses the desired water pressure by pressing the UP or DOWN arrows, and the CU301 does the rest.

In order to control pressure, it must be measured. The included pressure sensor precisely measures water pressure sending its signal to the CU301. The CU301 reads this pressure signal and then electronically commands the pump to start, stop, speed up, or slow down in order to maintain constant pressure regardless of water demand. It controls the pump via power line communications by impressing high speed data messages on the pumps power supply cable. This technology is similar to that used in a home intercom or a baby monitor.

Applications

• Domestic water supply
• Light commercial
• Irrigation
• Tank Applications

Features and benefits

• Push button pressure setpoint adjustment
• Low well water indicator
• Pump running indicator
• Keypad lockout
• High quality stainless steel pressure sensor
• Built-in diagnostics
• 2 year manufacturer warranty

Available Size:

• Flow rates: 5, 10, 15, 22 and 30 GPM
• Head up to 450 feet @ 10 GPM
• 115VAC and 230VAC models – all single phase

Description	Volts	HP	PH	Discharge (Inches)	Material #
10SQE05-110	100-115V	1/2	1	1 - 1/4	96160209
10SQE05-110	200-240V	1/2	1	1 - 1/4	96160182
10SQE05-160	100-115V	1/2	1	1 - 1/4	96160210
10SQE05-160	200-240V	1/2	1	1 - 1/4	96160183
10SQE07-200	200-240V	3/4	1	1 - 1/4	96160184
10SQE07-240	200-240V	3/4	1	1 - 1/4	96160185
10SQE10-290	200-240V	1	1	1 - 1/4	96160186
10SQE15-330	200-240V	1.5	1	1 - 1/4	96160187



Documentation:
Brochure
Product Guide
Pocket Guide
SQE Installation and Operating Instructions
CU301 Installation and Operating Instructions

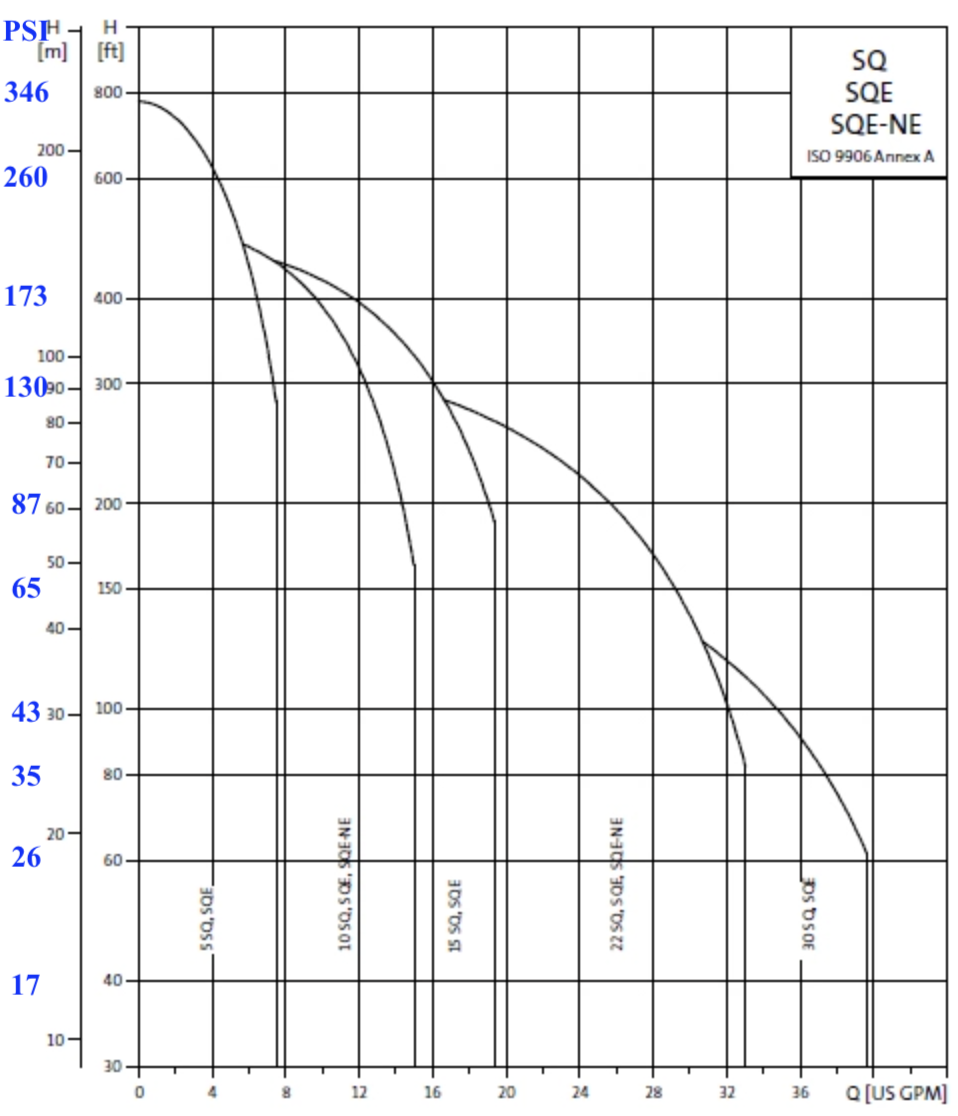

SQE Pump Performance Curve
